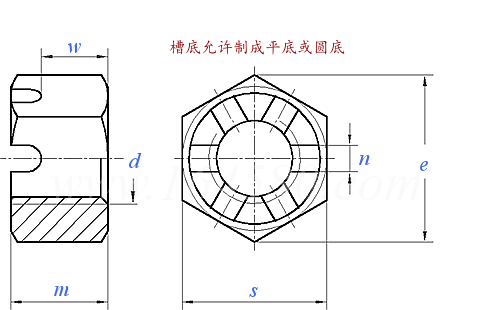

![[pics:title]](/static/upload/image/20230118/1674029608640303.png)
| 螺纹尺寸 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | M20 | M24 | M30 | M36 | ||
| d | |||||||||||||
| P | 螺距 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 3 | 3.5 | 4 | |
| e | 最小值 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 32.95 | 39.55 | 50.85 | 60.79 | |
| m | 最大值 | 7.6 | 8.9 | 10.94 | 13.54 | 17.17 | 18.9 | 21.9 | 25 | 30.3 | 35.4 | 40.9 | |
| 最小值 | 6.1 | 7.4 | 9.14 | 11.74 | 15.37 | 16.8 | 19.8 | 22.9 | 27.8 | 32.4 | 38.4 | ||
| n | 最大值 | 2 | 2.6 | 3.1 | 3.4 | 4.25 | 4.25 | 5.7 | 5.7 | 6.7 | 8.5 | 8.5 | |
| 最小值 | 1.4 | 2 | 2.5 | 2.8 | 3.5 | 3.5 | 4.5 | 4.5 | 5.5 | 7 | 7 | ||
| s | 最大值 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 30 | 36 | 46 | 55 | |
| 最小值 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 29.16 | 35 | 45 | 53.8 | ||
| w | 最大值 | 5.6 | 6.4 | 7.94 | 9.54 | 12.17 | 13.9 | 15.9 | 19 | 22.3 | 26.4 | 31.9 | |
| 最小值 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 16.9 | 20.2 | 24.3 | 29.4 | ||
| 千件重(钢制)≈kg | 1.22 | 2.39 | 5.03 | 9.86 | 14.84 | 21.62 | 33.35 | 64.06 | 111.5 | 228.5 | 387.8 | ||
