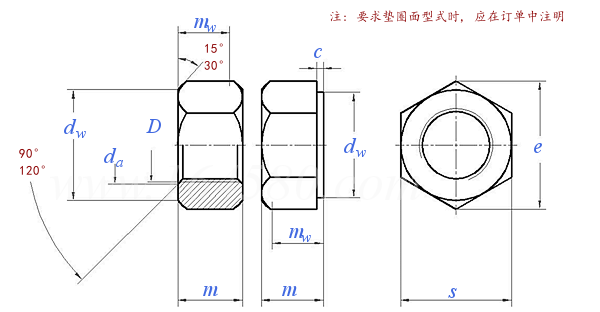

![[pics:title]](/static/upload/image/20230118/1674029005311020.png)
| 螺纹规格 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | M20 | M24 | M30 | M36 | ||
| D | |||||||||||||
| P | 螺距 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 3 | 3.5 | 4 | |
| c | 最大值 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| da | 最大值 | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 | 25.9 | 32.4 | 38.9 | |
| 最小值 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 | 30 | 36 | ||
| dw | 最小值 | 6.9 | 8.9 | 11.6 | 14.6 | 16.6 | 19.6 | 22.5 | 27.7 | 33.2 | 42.7 | 51.1 | |
| e | 最小值 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 32.95 | 39.55 | 50.85 | 60.79 | |
| m | 最大值 | 5.1 | 5.7 | 7.5 | 9.3 | 12 | 14.1 | 16.4 | 20.3 | 23.9 | 28.6 | 34.7 | |
| 最小值 | 4.8 | 5.4 | 7.14 | 8.94 | 11.57 | 13.4 | 15.7 | 19 | 22.6 | 27.3 | 33.1 | ||
| mw | 最小值 | 3.84 | 4.32 | 5.71 | 7.15 | 9.26 | 10.7 | 12.6 | 15.2 | 18.1 | 21.8 | 26.5 | |
| s | 最大值 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 30 | 36 | 46 | 55 | |
| 最小值 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 29.16 | 35 | 45 | 53.8 | ||
| 千件重(钢制)≈kg | 1.3 | 2.41 | 5.25 | 9.9 | 15.25 | 23.96 | 36.36 | 65.62 | 112.5 | 230.5 | 396 | ||
