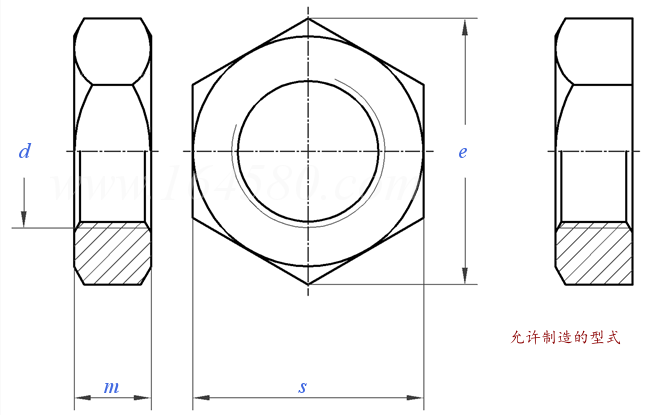

![[pics:title]](/static/upload/image/20230118/1674028582812502.png)
| 螺纹尺寸 | M1 | M1.2 | M1.4 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | ||
| d | ||||||||||||||
| P | 螺距 | 0.25 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | |
| s | 最大值=公称 | 3.2 | 3.2 | 3.2 | 3.2 | 4 | 5 | 5.5 | 7 | 8 | 10 | 14 | 17 | |
| 最小值 | 3.04 | 3.04 | 3.04 | 3.04 | 3.84 | 4.84 | 5.34 | 6.8 | 7.8 | 9.8 | 13.76 | 16.76 | ||
| m | 公称 | 0.8 | 0.8 | 1 | 1.2 | 1.2 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | |
| 最大值 | 0.9 | 0.9 | 1.2 | 1.4 | 1.4 | 1.7 | 2.2 | 2.7 | 3.2 | 4.24 | 5.24 | 6.24 | ||
| 最小值 | 0.7 | 0.7 | 0.8 | 1 | 1 | 1.3 | 1.8 | 2.3 | 2.8 | 3.76 | 4.76 | 5.76 | ||
| e | 3.7 | 3.7 | 3.7 | 3.7 | 4.6 | 5.8 | 6.3 | 8.1 | 9.2 | 11.5 | 16.2 | 19.6 | ||
| 千件重kg | 0.052 | 0.05 | 0.062 | 0.069 | 0.121 | 0.215 | 0.33 | 0.651 | 0.91 | 1.826 | 4.671 | 8.184 | ||
| 螺纹尺寸 | M12 | (M14) | M16 | (M18) | M20 | M22 | M24 | (M27) | M30 | M36 | M42 | M48 | ||
| d | ||||||||||||||
| P | 螺距 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 | |
| s | 最大值=公称 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 55 | 65 | 75 | |
| 最小值 | 18.72 | 21.72 | 23.72 | 26.72 | 29.72 | 31.66 | 35.66 | 40.66 | 45.66 | 54.6 | 64.6 | 74.6 | ||
| m | 公称 | 7 | 8 | 8 | 9 | 9 | 10 | 10 | 12 | 12 | 14 | 16 | 18 | |
| 最大值 | 7.29 | 8.29 | 8.29 | 9.29 | 9.29 | 10.29 | 10.29 | 12.35 | 12.35 | 14.35 | 16.35 | 18.35 | ||
| 最小值 | 6.71 | 7.71 | 7.71 | 8.71 | 8.71 | 9.71 | 9.71 | 11.65 | 11.65 | 13.65 | 15.65 | 17.65 | ||
| e | 21.9 | 25.4 | 27.7 | 31.2 | 34.6 | 36.9 | 41.6 | 47.3 | 53.1 | 63.5 | 75 | 86.5 | ||
| 千件重kg | 11.21 | 17.23 | 19.31 | 27.95 | 34.15 | 41.41 | 54.74 | 85.74 | 109.4 | 181.7 | 294.4 | 445.6 | ||
