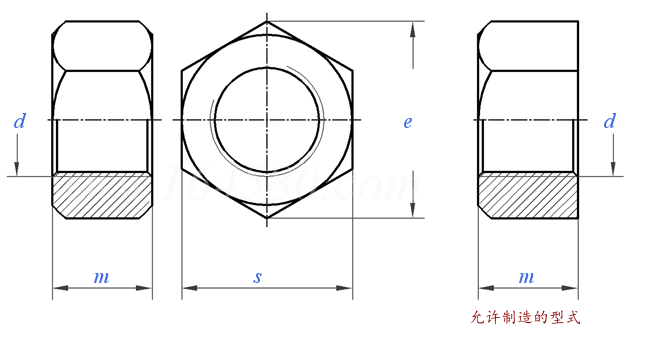

![[pics:title]](/static/upload/image/20230118/1674028525809583.png)
| 螺纹尺寸 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | ||
| d | |||||||||||||
| P | 螺距 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | |
| s | 最大值=公称 | 3.2 | 4 | 5 | 5.5 | 7 | 8 | 10 | 14 | 17 | 19 | 22 | |
| 最小值 | 3.04 | 3.84 | 4.84 | 5.34 | 6.8 | 7.8 | 9.8 | 13.76 | 16.76 | 18.72 | 21.72 | ||
| m | 公称 | 1.3 | 1.6 | 2 | 2.4 | 3.2 | 4 | 5 | 6 | 8 | 10 | 11 | |
| 最小值 | 1.1 | 1.4 | 1.8 | 2.2 | 2.96 | 3.76 | 4.76 | 5.76 | 7.71 | 9.71 | 10.65 | ||
| 最大值 | 1.5 | 1.8 | 2.2 | 2.6 | 3.44 | 4.24 | 5.24 | 6.24 | 8.29 | 10.29 | 11.35 | ||
| e | 3.7 | 4.6 | 5.8 | 6.3 | 8.1 | 9.2 | 11.5 | 16.2 | 19.6 | 21.9 | 25.4 | ||
| 千件重kg | 0.075 | 0.119 | 0.22 | 0.393 | 0.844 | 1.24 | 2.317 | 5.674 | 10.99 | 16.32 | 25.28 | ||
| 螺纹尺寸 | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | M36 | M42 | M48 | |||
| d | |||||||||||||
| P | 螺距 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 | ||
| s | 最大值=公称 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 55 | 65 | 75 | ||
| 最小值 | 23.72 | 26.72 | 29.72 | 31.66 | 35.66 | 40.66 | 45.66 | 54.6 | 64.6 | 74.6 | |||
| m | 公称 | 13 | 14 | 16 | 18 | 19 | 22 | 24 | 28 | 32 | 38 | ||
| 最小值 | 12.65 | 13.65 | 15.65 | 17.65 | 18.58 | 21.58 | 23.58 | 27.58 | 31.5 | 37.5 | |||
| 最大值 | 13.35 | 14.35 | 16.35 | 18.35 | 19.42 | 22.42 | 24.42 | 28.42 | 32.5 | 38.5 | |||
| e | 27.7 | 31.2 | 34.6 | 36.9 | 41.6 | 47.3 | 53.1 | 63.5 | 75 | 86.5 | |||
| 千件重kg | 34.12 | 44.19 | 61.91 | 75.94 | 111.9 | 168 | 234.2 | 370.9 | 598.6 | 957.3 | |||
