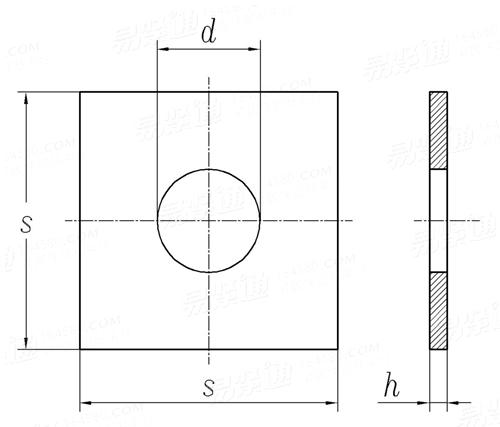

![[pics:title]](/static/upload/image/20230118/1674031775197462.png)
| 公称直径 | 6 | 8 | 10 | 12 | -14 | 16 | -18 | 20 | -22 | 24 | -27 | 30 | -33 | 36 | -39 | ||||
| d | 最小值=公称 | 6.6 | 9 | 11 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 30 | 33 | 36 | 39 | 42 | |||
| 最大值 | 7.2 | 9.6 | 11.7 | 14.7 | 16.7 | 18.7 | 20.8 | 22.8 | 24.8 | 26.8 | 30.8 | 34 | 37 | 40 | 43 | ||||
| s | 小平垫 | 最大值=公称 | 17 | 23 | 28 | 35 | 40 | 45 | 52 | 56 | 64 | 68 | 73 | - | - | - | - | ||
| 最小值 | 15.9 | 21.7 | 26.7 | 33.4 | 38.4 | 43.4 | 50.1 | 54.1 | 62.1 | 66.1 | 71.1 | - | - | - | - | ||||
| h | 小平垫 | 公称 | 1.2 | 1.6 | 1.6 | 2.3 | 3.2 | 3.2 | 4.5 | 4.5 | 4.5 | 6 | 6 | - | - | - | - | ||
| 最大值 | 1.4 | 1.8 | 1.8 | 2.6 | 3.6 | 3.6 | 5 | 5 | 5 | 6.7 | 6.7 | - | - | - | - | ||||
| 最小值 | 1 | 1.4 | 1.4 | 2 | 2.8 | 2.8 | 4 | 4 | 4 | 5.3 | 5.3 | - | - | - | - | ||||
| s | 大平垫 | 最大值=公称 | 20 | 26 | 32 | 40 | 44 | 52 | 55 | 62 | 68 | 72 | 80 | 90 | 100 | 110 | 115 | ||
| 最小值 | 18.7 | 24.7 | 30.4 | 38.4 | 42.4 | 50.1 | 53.1 | 60.1 | 66.1 | 70.1 | 78.1 | 87.8 | 97.8 | 107.8 | 112.8 | ||||
| h | 大平垫 | 公称 | 2.3 | 2.3 | 2.3 | 3.2 | 3.2 | 4.5 | 4.5 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | ||
| 最大值 | 2.6 | 2.6 | 2.6 | 3.6 | 3.6 | 5 | 5 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 8.7 | 8.7 | 8.7 | ||||
| 最小值 | 2 | 2 | 2 | 2.8 | 2.8 | 4 | 4 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 7.3 | 7.3 | 7.3 | ||||
