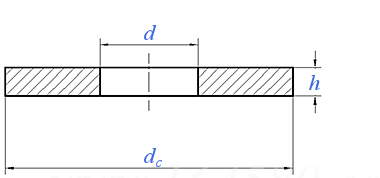

![[pics:title]](/static/upload/image/20230118/1674031569737250.png)
| 规格 | Φ1.6 | Φ2 | Φ2.5 | Φ3 | (Φ3.5) | Φ4 | Φ5 | Φ6 | Φ8 | Φ10 | Φ12 | (Φ14) | Φ16 | (Φ18) | Φ20 | ||
| d | 最小值=公称 | 1.8 | 2.4 | 2.9 | 3.4 | 3.9 | 4.5 | 5.5 | 6.6 | 9 | 11 | 13.5 | 15.5 | 17.5 | 20 | 22 | |
| 最大值 | 2.05 | 2.65 | 3.15 | 3.7 | 4.2 | 4.8 | 5.8 | 6.96 | 9.36 | 11.43 | 13.93 | 15.93 | 17.93 | 20.43 | 22.52 | ||
| dc | 最大值=公称 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 16 | 20 | 24 | 28 | 30 | 34 | 37 | |
| 最小值 | 3.25 | 4.25 | 5.25 | 6.1 | 7.1 | 8.1 | 9.1 | 10.9 | 14.9 | 18.7 | 22.7 | 26.7 | 28.7 | 32.4 | 35.4 | ||
| h | 公称 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.8 | 1 | 1.6 | 1.6 | 2 | 2.5 | 2.5 | 3 | 3 | 3 | |
| 最大值 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 1 | 1.2 | 1.9 | 1.9 | 2.3 | 2.8 | 2.8 | 3.6 | 3.6 | 3.6 | ||
| 最小值 | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.6 | 0.8 | 1.3 | 1.3 | 1.7 | 2.2 | 2.2 | 2.4 | 2.4 | 2.4 | ||
| 千件重(钢制)≈kg | 0.024 | 0.036 | 0.085 | 0.115 | 0.15 | 0.3 | 0.43 | 0.991 | 1.73 | 3.44 | 6.07 | 8.38 | 10.98 | 13.98 | 16.37 | ||
| 规格 | (Φ22) | Φ24 | (Φ27) | Φ30 | (Φ33) | Φ36 | (Φ39) | Φ42 | (Φ45) | Φ48 | (Φ52) | Φ56 | (Φ60) | Φ64 | |||
| d | 最小值=公称 | 24 | 26 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | 52 | 56 | 62 | 66 | 70 | ||
| 最大值 | 24.52 | 26.52 | 30.52 | 33.62 | 37 | 40 | 43 | 46 | 49 | 53.2 | 57.2 | 63.2 | 67.2 | 71.2 | |||
| dc | 最大值=公称 | 39 | 44 | 50 | 56 | 60 | 66 | 72 | 78 | 85 | 92 | 98 | 105 | 110 | 115 | ||
| 最小值 | 37.4 | 42.4 | 48.4 | 54.1 | 58.1 | 64.1 | 70.1 | 76.1 | 82.8 | 89.8 | 95.8 | 102.8 | 107.8 | 112.8 | |||
| h | 公称 | 3 | 4 | 4 | 4 | 5 | 5 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | ||
| 最大值 | 3.6 | 4.6 | 4.6 | 4.6 | 6 | 6 | 7 | 9.2 | 9.2 | 9.2 | 9.2 | 11.2 | 11.2 | 11.2 | |||
| 最小值 | 2.4 | 3.4 | 3.4 | 3.4 | 4 | 4 | 5 | 6.8 | 6.8 | 6.8 | 6.8 | 8.8 | 8.8 | 8.8 | |||
| 千件重(钢制)≈kg | 17.48 | 31.07 | 39.46 | 50.48 | 71.02 | 87.39 | 126.5 | 200.2 | 242.7 | 284.1 | 319 | 442.7 | 477.4 | 513.2 | |||
