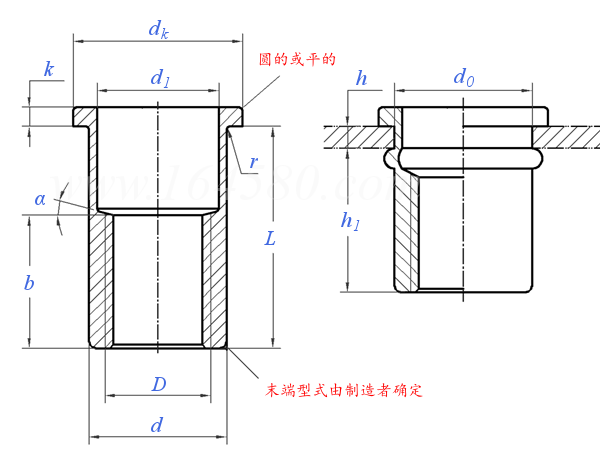

![[pics:title]](/static/upload/image/20230118/1674030504786520.png)
| 螺纹规格 | M3 | M4 | M5 | M6 | M8 | M10 | M10 | M12 | M12 | ||
| D | |||||||||||
| P | 粗牙 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1 | 1.75 | 1.5 | |
| d | 公称 | 5 | 6 | 7 | 9 | 11 | 13 | 13 | 15 | 15 | |
| 最大值 | 4.97 | 5.97 | 6.97 | 8.97 | 10.97 | 12.97 | 12.97 | 14.97 | 14.97 | ||
| 最小值 | 4.9 | 5.9 | 6.9 | 8.9 | 10.9 | 12.9 | 12.9 | 14.9 | 14.9 | ||
| d1 | 最小值=公称 (H12) | 4 | 4.8 | 5.6 | 7.5 | 9.2 | 11 | 11 | 13 | 13 | |
| 最大值 | 4.12 | 4.92 | 5.72 | 7.65 | 9.35 | 11.18 | 11.18 | 13.18 | 13.18 | ||
| dk | 最大值 | 8 | 9 | 10 | 12 | 14 | 16 | 16 | 18 | 18 | |
| k | 0.8 | 0.8 | 1 | 1.5 | 1.5 | 1.8 | 1.8 | 1.8 | 1.8 | ||
| r | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | ||
| d0 | 最小值=公称 | 5 | 6 | 7 | 9 | 11 | 13 | 13 | 15 | 15 | |
| 最大值 | 5.15 | 6.15 | 7.15 | 9.15 | 11.15 | 13.15 | 13.15 | 15.15 | 15.15 | ||
| h1 | 参考值 | 5.8 | 7.5 | 9.3 | 11 | 12.3 | 15 | 15 | 17.5 | 17.5 | |
| 推荐铆接厚度 h | - | - | - | - | - | - | - | - | - | ||
| 千件钢制重≈kg | - | - | - | - | - | - | - | - | - | ||
