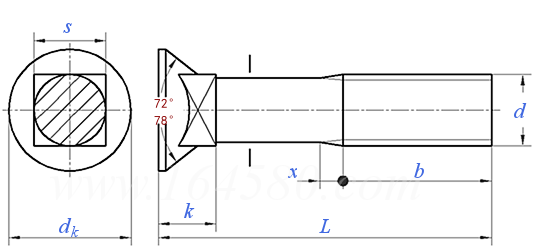

![[pics:title]](/static/upload/image/20230118/1674024491378124.png)
| 螺纹尺寸 | M6 | M8 | M10 | M12 | M16 | M20 | |
| d | |||||||
| P | 螺距 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 |
| b | L≤125 | 18 | 22 | 26 | 30 | 38 | 46 |
| 125＜L≤200 | / | 28 | 32 | 36 | 44 | 52 | |
| dk | 最大值 | 11.05 | 14.55 | 17.55 | 21.65 | 28.65 | 36.8 |
| 最小值 | 9.95 | 13.45 | 16.45 | 20.35 | 27.35 | 35.2 | |
| k | 最大值 | 6.1 | 7.25 | 8.45 | 11.05 | 13.05 | 15.05 |
| 最小值 | 5.3 | 6.35 | 7.55 | 9.95 | 11.95 | 13.95 | |
| s | 最大值 | 6.36 | 8.36 | 10.36 | 12.43 | 16.43 | 20.52 |
| 最小值 | 5.84 | 7.8 | 9.8 | 11.76 | 15.76 | 19.72 | |
| x | 最大值 | 2.5 | 3.2 | 3.8 | 4.3 | 5 | 6.3 |
| 千件钢制重≈kg | - | - | - | - | - | - | |
| 螺纹长度b | - | - | - | - | - | - | |
