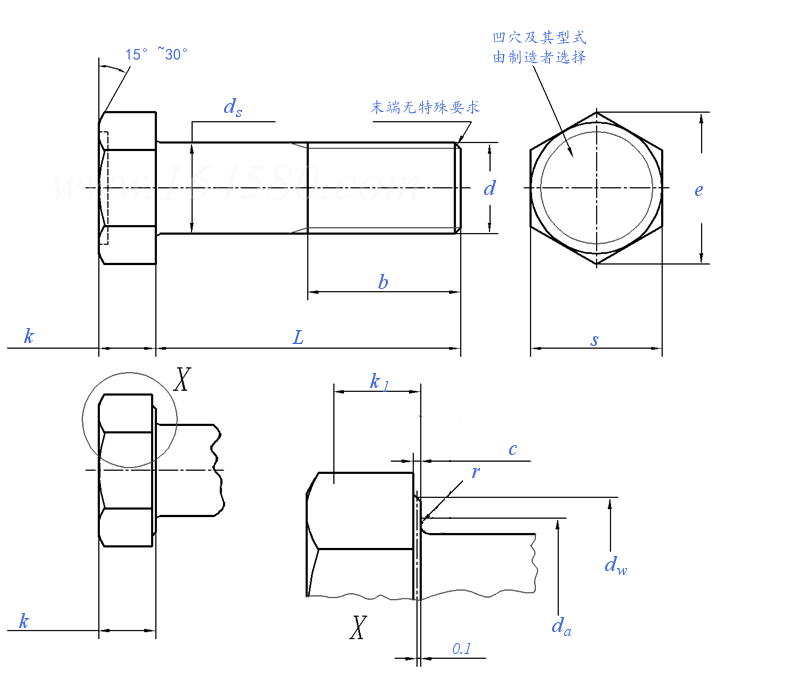

![[pics:title]](/static/upload/image/20230118/1674023532452516.png)
| 螺纹规格 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | |
| d | |||||||||||||
| P | 螺距 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 |
| b | L≤125 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 60 |
| 125＜L≤200 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | |
| L＞200 | 35 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 79 | |
| c | 最大值 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| da | 最大值 | 6 | 7.2 | 10.2 | 12.2 | 14.7 | 16.7 | 18.7 | 21.2 | 24.4 | 26.4 | 28.4 | 32.4 |
| ds | 最大值 | 5.48 | 6.48 | 8.58 | 10.58 | 12.7 | 14.7 | 16.7 | 18.7 | 20.84 | 22.84 | 24.84 | 27.84 |
| 最小值 | 4.52 | 5.52 | 7.42 | 9.42 | 11.3 | 13.3 | 15.3 | 17.3 | 19.16 | 21.16 | 23.16 | 26.16 | |
| dw | 最小值 | 6.74 | 8.74 | 11.47 | 14.47 | 16.47 | 19.15 | 22 | 24.85 | 27.7 | 31.35 | 33.25 | 38 |
| e | 最小值 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 |
| k | 公称 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 |
| 最大值 | 3.875 | 4.375 | 5.675 | 6.85 | 7.95 | 9.25 | 10.75 | 12.4 | 13.4 | 14.9 | 15.9 | 17.9 | |
| 最小值 | 3.125 | 3.625 | 4.925 | 5.95 | 7.05 | 8.35 | 9.25 | 10.6 | 11.6 | 13.1 | 14.1 | 16.1 | |
| k1 | 最小值 | 2.19 | 2.54 | 3.45 | 4.17 | 4.94 | 5.85 | 6.48 | 7.42 | 8.12 | 9.17 | 9.87 | 11.27 |
| r | 最小值 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1 |
| s | 最大值=公称 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 |
| 最小值 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | |
| 千件钢制重≈kg | - | - | - | - | - | - | - | - | - | - | - | - | |
| 螺纹长度b | - | - | - | - | - | - | - | - | - | - | - | - | |
| 螺纹规格 | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | ||
| d | |||||||||||||
| P | 螺距 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | |
| b | L≤125 | 66 | - | - | - | - | - | - | - | - | - | - | |
| 125＜L≤200 | 72 | 78 | 84 | 90 | 96 | 102 | 108 | 116 | - | - | - | ||
| L＞200 | 85 | 91 | 97 | 103 | 109 | 115 | 121 | 129 | 137 | 145 | 153 | ||
| c | 最大值 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| da | 最大值 | 35.4 | 38.4 | 42.4 | 45.4 | 48.6 | 52.6 | 56.6 | 62.6 | 67 | 71 | 75 | |
| ds | 最大值 | 30.84 | 34 | 37 | 40 | 43 | 46 | 49 | 53.2 | 57.2 | 61.2 | 65.2 | |
| 最小值 | 29.16 | 32 | 35 | 38 | 41 | 44 | 47 | 50.8 | 54.8 | 58.8 | 62.8 | ||
| dw | 最小值 | 42.75 | 46.55 | 51.11 | 55.86 | 59.95 | 64.7 | 69.45 | 74.2 | 78.66 | 83.41 | 88.16 | |
| e | 最小值 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 | |
| k | 公称 | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 | 35 | 38 | 40 | |
| 最大值 | 19.75 | 22.05 | 23.55 | 26.05 | 27.05 | 29.05 | 31.05 | 34.25 | 36.25 | 39.25 | 41.25 | ||
| 最小值 | 17.65 | 19.95 | 21.45 | 23.95 | 24.95 | 26.95 | 28.95 | 31.75 | 33.75 | 36.75 | 38.75 | ||
| k1 | 最小值 | 12.36 | 13.97 | 15.02 | 16.77 | 17.47 | 18.87 | 20.27 | 22.23 | 23.63 | 25.73 | 27.13 | |
| r | 最小值 | 1 | 1 | 1 | 1 | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 | 2 | |
| s | 最大值=公称 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | |
| 最小值 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | ||
| 千件钢制重≈kg | - | - | - | - | - | - | - | - | - | - | - | ||
| 螺纹长度b | - | - | - | - | - | - | - | - | - | - | - | ||
